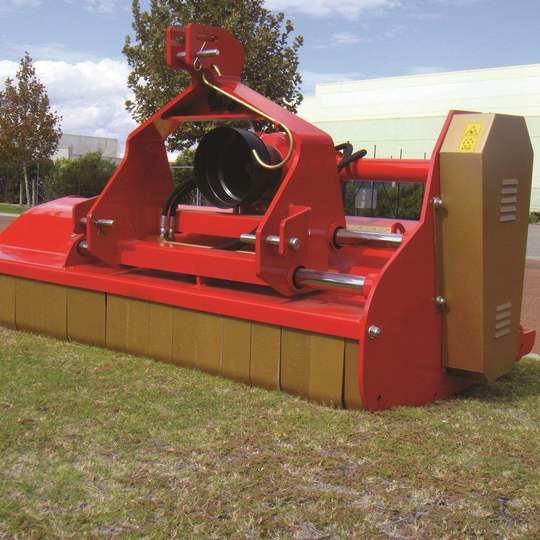

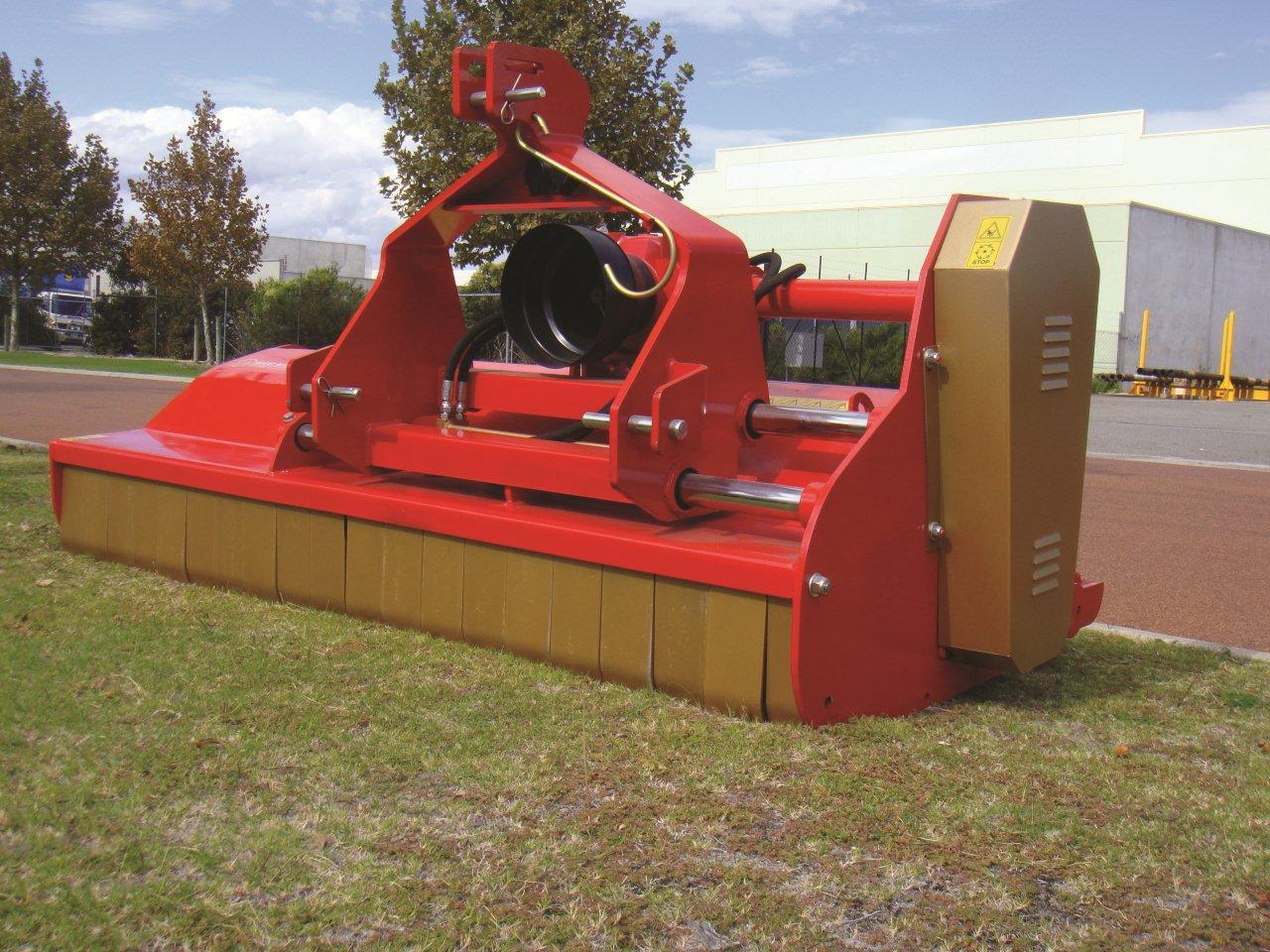

Broadlands machinery photos 048

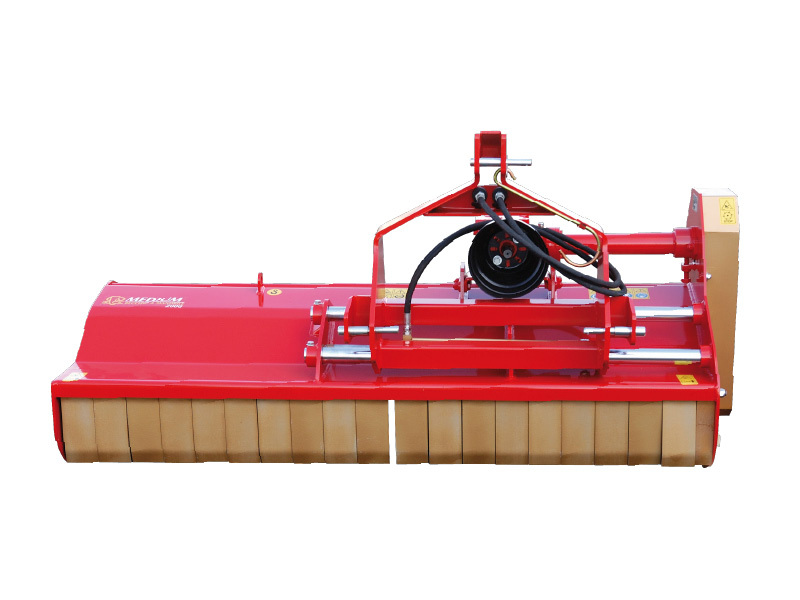

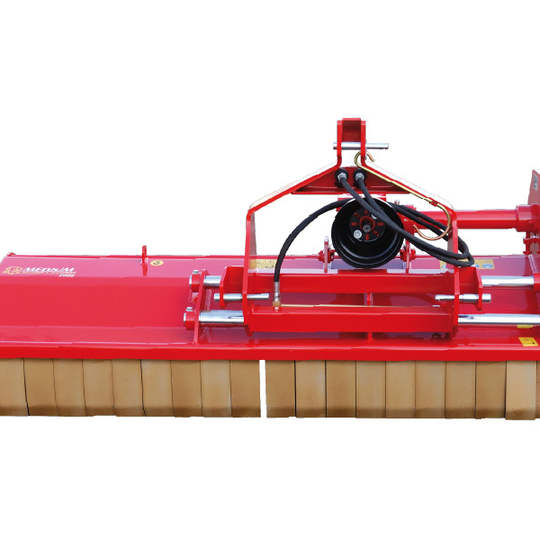

Ml rotazione1

Becchio Mulchers are extremely hard working and can easily handle Australia's hard conditions. These machines are reliable workhorses that require little maintenance and no hassles.

Features

  • Particularly suitable for Australia's tough conditions
  • Ideal for large properties, contractors and public works
  • Smooth, cool running toothed belt and shaft rotor drive
  • Can be fitted with both front and rear linkage (optional)
  • Oversize 220mm diameter for super stability
Hammers

Both Hammers and Y-Blades available. Heavy Duty steel hammers suitable for grass and wood shredding and Y-Blades for shredding grass, shrubs and vine branches.

Linkage

The link can be shifted either hydraulically or manually on giudes fixed to the suppoting frame. The configuration makes the machine as compact and robust as required by heavy ground operation.

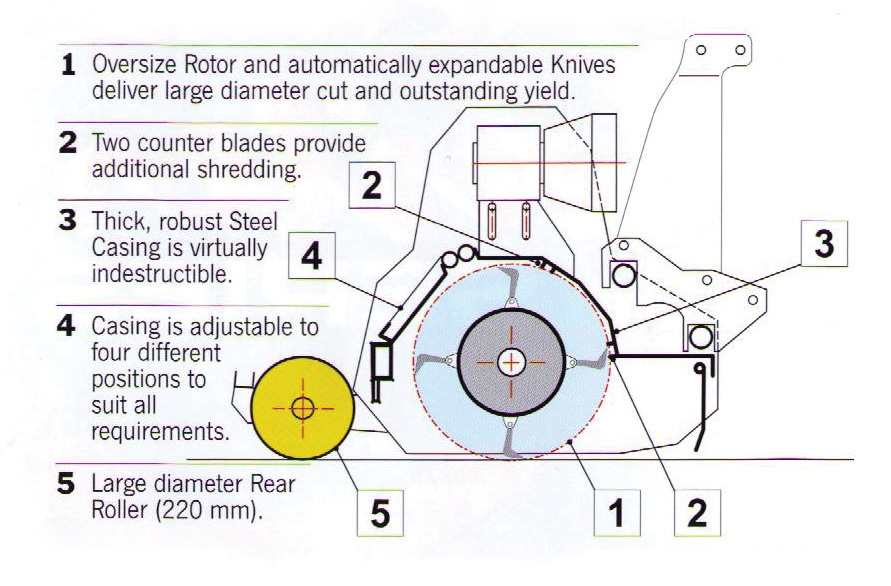

Rotor

The rotor is supported by two robust flange supports equipped with large self-lubricating oscillating bearings. Tapered bushes prevent any vibrations or rotor misalignment.

Power

The movement is transmitted to the rotor shaft by means of toothed belts on well balanced pulleys to ensure the best grip and a perfect ventilation. Tapered keys provide a safe locking and prevent vibrations.

Model Summary

ML180
ML200
ML225
ML240
ML260
ML280
Working Width180mm200mm
225mm
240mm
260mm
280mm
Total Width
1960mm
2160mm
2410mm
2560mm
2780mm
2980mm
Weight
700kg
770kg
847kg
931kg
1024kg
1100kg
Hammers
20
22
24
26
28
30
Knives
60
66
72
78
84
90
Req. Power(HP)
50/60
60/70
70/75
75/80
80/85
85/90
